A JUMP-START TO YOUR IOT CHIPSET DESIGN!

BLRLABS offers A MARKET-READY SILICON PROVEN NB-IOT IP READY to integrate with your chipset.


NB-IOT: A new cellular option for IoT
Traditional cellular service providers are moving aggressively to service the new emerging markets of IoT and M2M connectivity. 3GPP Release 14 defined two new Low Power Wide Area (LPWA) network standards, LTE Cat M1 and LTE Cat NB1 (NB-IOT). NB-IOT is one of the new cellular standards targeted to support sensor type and cellular connection applications which need to operate under battery power for ten years or more.
NB-IoT Applications include:
  • Industrial IoT
  • Smart Cities
  • Smart Health
  • Smart Home

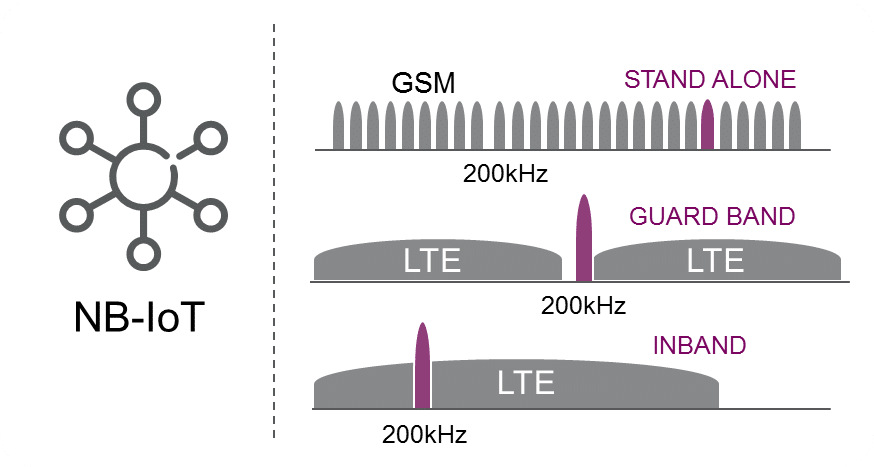

NB-IoT focuses specifically on indoor coverage, low cost, long battery life, and enabling a large number of connected devices. The NB-IoT technology can be deployed “in-band” in spectrum allocated to Long Term Evolution (LTE)—utilizing resource blocks within a normal LTE carrier, or in the unused resource blocks within an LTE carrier’s guard-band—or “standalone” for deployments in the dedicated spectrum. It is also suitable for the re-farming of GSM spectrum.

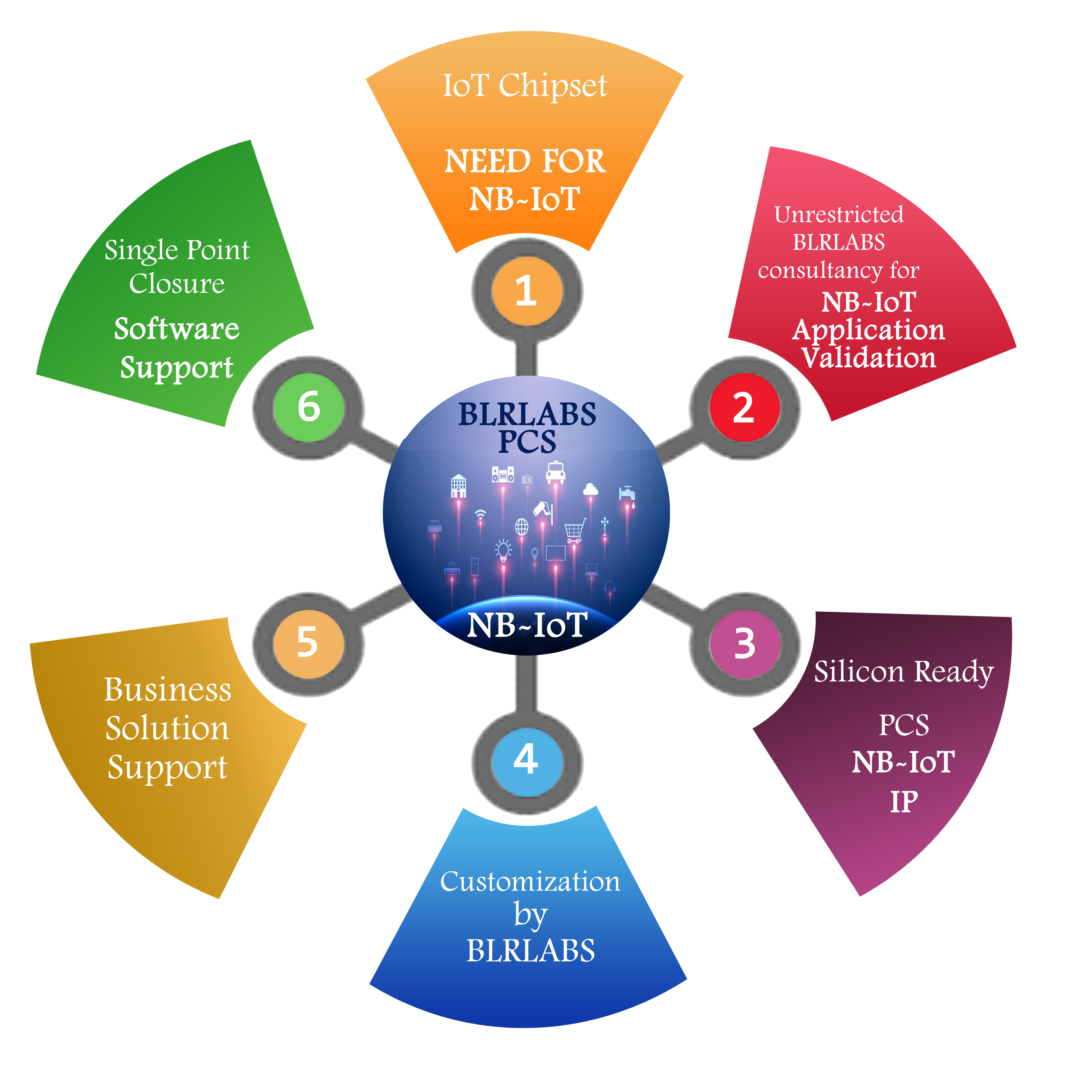

PCS-NB-IoT solution Advantages:
With PCS-NB-IoT solution, you have an Extremely low power, compact size IP which is silicon proven & ready to Integrate into your wireless chipset at edge enabling you to Go-to-Market at a faster pace, giving you a early-to market advantage & win more customers. Check out the metrics below for a quick glance.
Key Metrics:
  • Compliant to 3GPP 36.101 v14.20
  • Meets NB-IoT transceiver requirements for Low Band (LB) & High Band (HB)
  • -LB from 699MHz to 960MHz: bands 5, 8, 12, 13, 17, 18, 19, 20, 26, 28
  • -HB from 1695MHz to 2200MHz: bands 1, 2, 3, 66, 70
  • +10dBm max output power (can achieve 23 dBm power class with external PA).
  • 0.5 dB step TX power control
  • It supports the 200kHz bandwidth modes of the standard
  • Supports several type of interfaces USB, I2C, UART, etc..
  • Greater than 10 years battery life
  • Fully integrated RX DC offset calibrations
  • 56 pin, 6x6 QFN Silicon proven
  • Integrated transceiver area of 2.5 mm2 in TSMC 40LP

For Sales and further Enquiry Contact


Phone: +91 9731269485
Email: sales@blrlabs.com
Test Data
Test Data
Test Data
Test Data

About
BLR LABS PVT LTD

BLRLABS (Bangalore Labs) a technology pivot for co-designing hardware and software solutions. Our niche expertise enables us to offer services in Semiconductor Design and System Software at edge. We offer product engineering services for Internet of Things pan industry verticals, preferred partner from ideation stage to platform realization.

At BLRLABS (Bangalore Labs) we Co-create Next Generation products with our intellects, esteemed customers and technology partners. We take pride in being associated with academia, industry bodies and forums.

Our design services team works as extended engineering teams of product development companies to meet their product goals/schedules and help in mitigating challenges. With the flexible business models, BLRLABS (Bangalore Labs) extends services either in ODC mode or at client location to augment the customer engineering teams. The teams are experienced in product design and development from requirements capturing, architecture, project planning, design, implementation and validation.
